24" Alaskan Mk IV Chainsaw Mill
Description

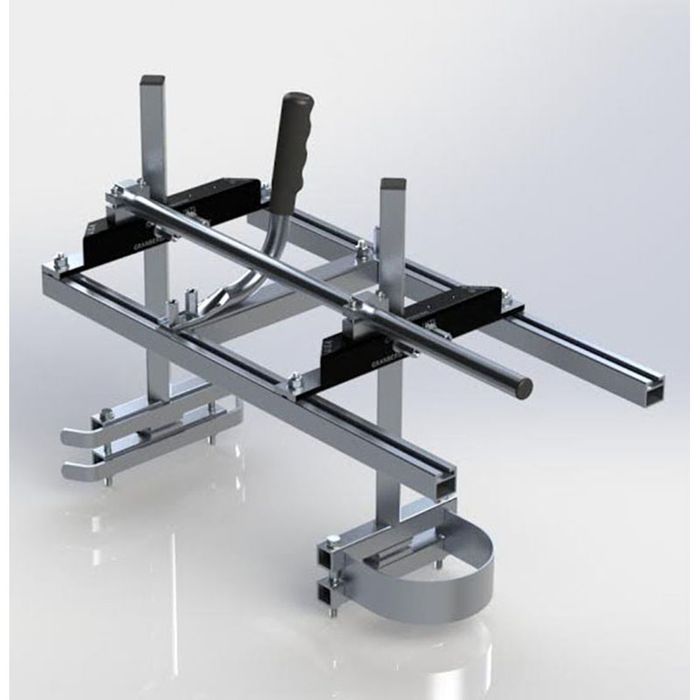

24" Alaskan MK IV Chainsaw Mill
Used for/with: Chainsaws with bars of 28" or less and 50cc or more displacement.
Fits: All Chainsaw makes.
General description: Basic Mill and 24-inch Handle and Rail Set: Tubular Aircraft aluminum extrusion and zinc-plated steel parts. Instruction manual & assembly hardware. High-quality U.S. made aircraft aluminum and steel. MADE IN THE USA.
Use description: This versatile, heavy-duty chainsaw lumber mill accurately cuts planks and beams up to 21" (53cm) wide and 1/2" to 13" deep. Clamps onto your chainsaw bar with no drilling required. Lightweight and portable, enables user to mill lumber where the tree falls. No previous experience required! New CNC-Machined billet end brackets! (See photo) These new end brackets are more accurate, easier to adjust, create less vibration than the old die cast version and are virtually unbreakable. Perfect for homeowners, woodworkers, arborists and sawyers. Optimal results will be had when used in conjunction with ripping chain and accurate first cut.
Assembly: This mill will need assembly, watch the video below for a guide.
And then watch this video...
-Milling with the 36" Alaskan MK-IV (G778-36) with a Stihl 880 through some -Deodar Cedar.
-The Edging Mill (G555B) being used to square up the log to make dimensional lumber.
-Alaskan Small Log Mill slicing through some salvaged redwood. Using a Husq 372xp.
Basic Mill Chart
| Max Bar Size | Mill Code | Max Cutting Width | Minimum Power Required |
| 28" | G778-24 | 21"/53cm | 60cc |
| 36" | G778-30 | 25"/63cm | 60cc |
| 42" | G778-36 |
33"/83cm |
70cc |
| 52" | G778-48 | 45"/114cm | 90cc |
| 60" | G778-56 | 53"/134cm | 90cc |
| 64" | G778-60 | 57"/144cm | 120cc |
| 76" | G778-72 | 69"/175cm | 120cc |
| 88" | G778-84 | 81"/205cm | 120cc |
|
*Please note that these are the maximum bar lengths that will fit each size mill, you can run any length below these sizes on your milll. *Please also note that the minimum power requirements are exactly that, we would recommend 75cc saw for mills up to 30" and 90cc saw for mills up to 56" and 120cc for all above for the best performance. Its anway best to have as large a saw as you can for milling. |
|||
