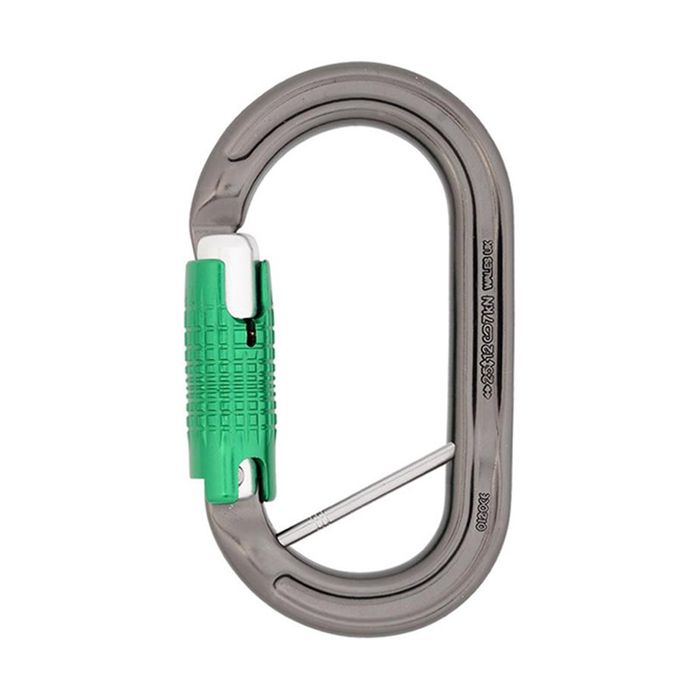

DMM Ultra O Locksafe Captive Bar (Titanium/Green)
Description
DMM ULTRA O - LOCKSAFE - Captive Bar |
The ultra-light, clean nose Ultra O carabiners are the mainstay of our carabiner range, and for good reason. Not only do they give high strength to weight ratios and feel great in the hand, they also help to keep components of a system aligned. The deep symmetrical basket allows pulleys, webbing, ropes and even other carabiners to 'centre' naturally and still allow easy stacking of components on either side. A connecting classic.
This Ultra O is supplied cross-drilled to accommodate captive bars. This means that the lanyard or attachment cannot be removed and ensures that the direction of force applied in the event of a fall is along the major axis of the connector, giving maximum strength and holding power. The captive bars themselves are not for load bearing use.
Features:
- Approved to EN362:2004/B
- Also available pre-drilled with a captive bar option conforming to EN362:2004/T
- Oval shape allows central positioning of devices
- I-Beam section for increased strength to weight ratio
- Keylock clean nose for snag free connection
- Hot forged and fully heat treated aluminium for lightness and maximum strength
- Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
- Recommended for use with pulleys and as a general connector
- Individually marked for traceability
Locking system | Locksafe - Captive Bar |
Gate opening | 19mm |
Major axis strength | 25kN |
Minor axis strength | 12kN |
Open gate strength | 7kN |
Blind Nose | Yes |
Colour | Titanium/Green |
Weight | 76g |
Height | 109mm |
Width | 63mm |
Body Material | Aluminium |
Approved Standards | EN 362:2004 B/ T, EN 12275:2013 B |
