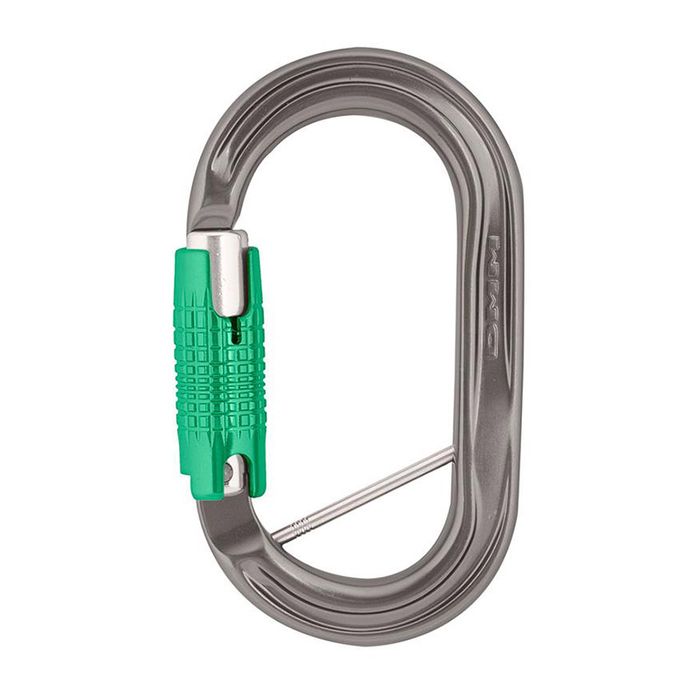

DMM AmericanO Captive Bar Locksafe
Price:
$47.90 inc GST
Code:
A347CB
Description
DMM AMERICANO - CAPTIVE BAR LOCKSAFE |  |
The Extra Caffeinated Oval
An oval that packs a punch. Larger than our classic Ultra O, it shares the same stable loading characteristics but with more volume when required. This addition to our oval connector range means we now have the compact PerfectO, the industry standard Ultra O and the larger AmericanO.
The AmericanO is also DMM's first ANSI (American National Standards Institute) compliant true oval connector. It is especially suited for industries that apply this standard. A DMM oval for all applications.
Features:
- Our first ANSI compliant oval connector
- True oval shape for predictable loading
- Large size for use with gloves
- Locksafe and Kwiklock gate options
- Available with a removeable threaded captive bar
| Locking system | Locksafe |
| Gate opening | 22mm |
| Major axis strength | 25kN |
| Minor axis strength | 9kN |
| Open gate strength | 7kN |
| Blind Nose | Yes |
| Colour | Titanium/Green |
| Weight | 74g |
| Height | 114mm |
| Width | 66mm |
| Body Material | Aluminium |
| Approved Standards | EN 362:2004 B/ T, EN 12275:2013 B |
