ISC SATURN Series Rigging Ring Medium - WLL 40kN

Price:
$143.00 inc GST
Code:
RIN3238A1

Description

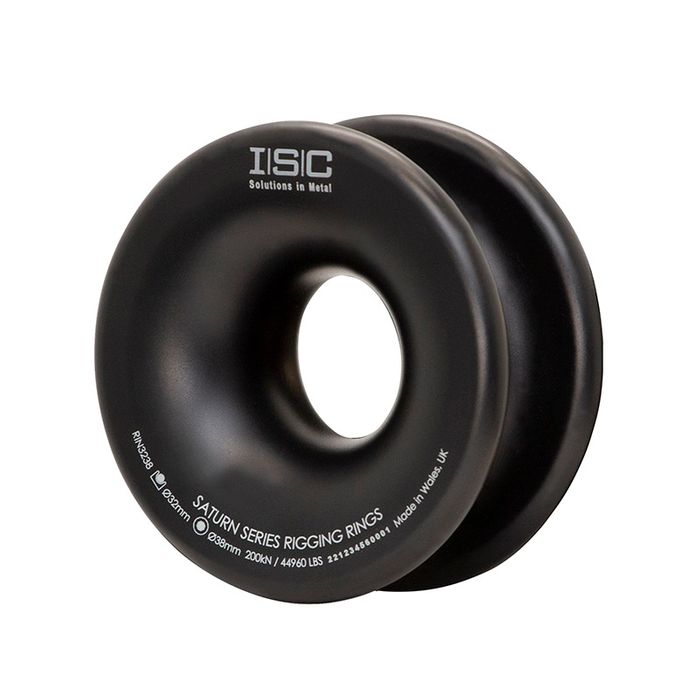

ISC SATURN Series Rigging Ring - Medium

SATURN Series Rigging Rings are CNC Machined from solid Aluminium, with smooth radiused rope surfaces.  The rings have a Hard-Anodised coating for durability and a polished, low-friction finish.

ISC SATURN Rings are available in three sizes and can be used in a variety of rigging configurations.  SATURN Rings can also be spliced in to anchor slings by the supplier/user and used to create single/multiple redirects, to tailor the friction in a rigging system. Rigging rings are versatile, low maintenance and easy to inspect.

Product Code RIN2528A1  RIN3238A1  RIN4452A1
Overall Diameter 88mm  112mm  138mm
Inner Diameter 28mm  38mm  52mm
Groove Radius (rope path) 25mm  32mm  44mm
WLL 28kN (6294lbf)  40kN (8992lbf)  60kN (13488lbf)
Serial numbering As standard  As standard  As standard
Finish Hard anodised  Hard Anodised  Hard Anodised
Weight 302g  591g 1073g
Approved Standards CE 2006/42/EC
UKCA
 CE 2006/42/EC
UKCA
  CE 2006/42/EC
UKCA
