ISC SATURN Series Rigging Ring Large - WLL 60kN
Price:
$286.00 inc GST
Code:
RIN4452A1
Description

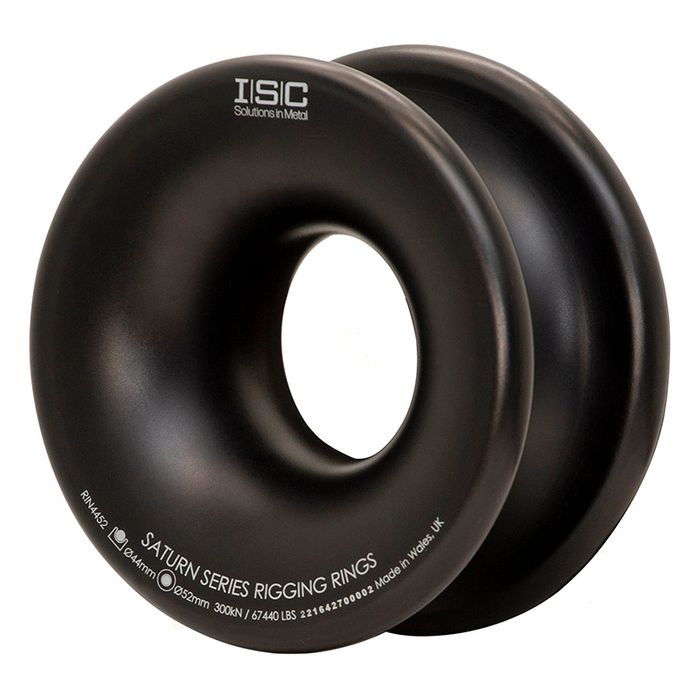

ISC SATURN Series Rigging Ring - Large
SATURN Series Rigging Rings are CNC Machined from solid Aluminium, with smooth radiused rope surfaces. The rings have a Hard-Anodised coating for durability and a polished, low-friction finish.
ISC SATURN Rings are available in three sizes and can be used in a variety of rigging configurations. SATURN Rings can also be spliced in to anchor slings by the supplier/user and used to create single/multiple redirects, to tailor the friction in a rigging system. Rigging rings are versatile, low maintenance and easy to inspect.
Product Code | RIN2528A1 | RIN3238A1 | RIN4452A1 |
Overall Diameter | 88mm | 112mm | 138mm |
Inner Diameter | 28mm | 38mm | 52mm |
Groove Radius (rope path) | 25mm | 32mm | 44mm |
WLL | 28kN (6294lbf) | 40kN (8992lbf) | 60kN (13488lbf) |
Serial numbering | As standard | As standard | As standard |
Finish | Hard anodised | Hard Anodised | Hard Anodised |
Weight | 302g | 591g | 1073g |
Approved Standards | CE 2006/42/EC UKCA |
CE 2006/42/EC UKCA |
CE 2006/42/EC UKCA |
