Description

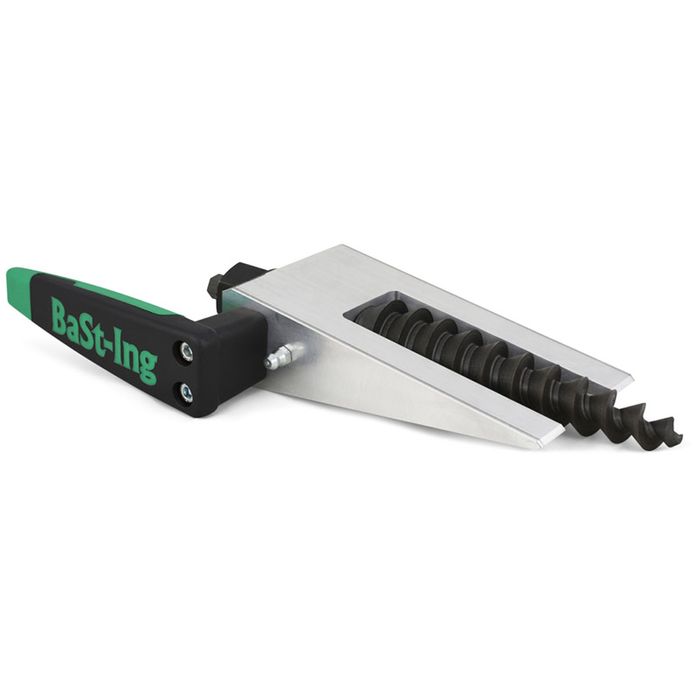

MiniFix BaSt-Ing Thrust Cone Wedge 2-3T

With the MiniFix, we are proud to be able to offer you a worldwide new felling wedge concept. The wedge pulls itself into the saw cut by means of the conical wedge. In contrast to conventional conical wedges, the lifting force is brought into the tree via an aluminum wedge. This design generates significantly more lifting force than conventional tapered wedges, while at the same time being simple and robust. The MiniFix is for supporting the ValFix. The lifting capacity depends on the strength of the wood. When the wedge reaches the max capacity the spindle breaks the wood out of the tree.

Ideally suited to bring down trees with a small back slope quickly and safely. The lifting force of the ValFix can be increased by using the MiniFix as well.
When repositioning the ValFix, the MiniFix is ​​used to support the tree. Due to the tree shape of the MiniFix, the MiniFix also pulls itself into a closed saw joint to quickly and easily free a jammed chainsaw if necessary.

Technical data at a glance:

• Weight: 1.4kg
• Length: 280mm
• Maximum torque 700Nm on the 10mm hex
• Maximum torque 1700Nm on the 24mm hex
• The MiniFix has a 10mm drive and a 24mm drive. It can therefore be used in combination with ValFix and ValFast.
